Product Introduction

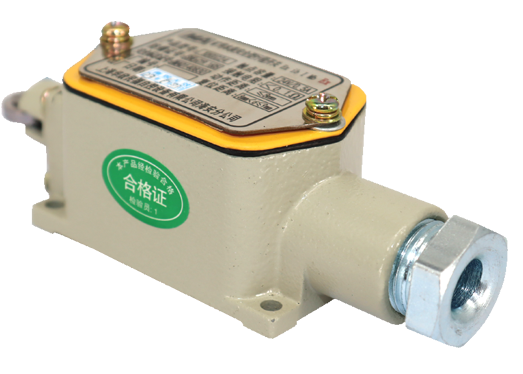

The KHXC24 intrinsically safe limit switch for mining is suitable for dangerous environments prone to coal dust and gas explosions in underground coal mines. To control the travel area of the automatic electromechanical equipment by its control system for underground mines, this switch has obvious break points, and operates stably and reliably. Assuming no external damage occurs, this product can work over a long period of time, and is supported by a warranty period of 18 months.
- Type of protection: Intrinsically safe for mining
- Explosion-proof mark: Ex ib I Mb
- The switch components are mechanical contacts, and the protective enclosure has an IP rating of IP54.
- Overall dimensions: L130mm × W41mm × H42mm
- Installation dimensions: 64mm × 34mm
- Fixed aperture: Φ5mm
- Operation travel distance: ≤8mm
- Reset distance: 8mm
- Detection mode: Direct plunger roller type, universal spring type
- The switch features two sets of contacts, with one normally open (NO) and the other set is normally closed (NC).
- Rated voltage: DC24V
- Contact capacity: 0.5A
- Operating voltage: 8-24V
